Product Overview

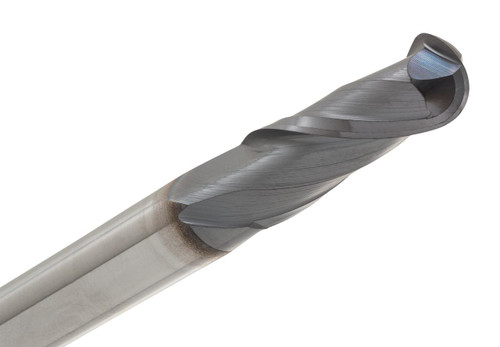

The CGS Tool 422-3750-ALTiN is a 3/8" diameter 2-flute solid carbide ball end mill built specifically for profile milling and rounded pocket work, with a double-end design that adds real value at this diameter. It belongs to the 422 Series, CGS Tool's double-end ball nose line.
What sets this tool apart is the .1875" radius doing the finish work, backed by an ALTiN coating for the more demanding milling conditions. The double-end build gives you two usable cutting ends, and running a 30° helix, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .1875"
- Series: CGS 422 Series
- Part No: 422-3750-ALTiN
Key Performance Features:
- 2-flute ball end design for contour and profile milling
- Double-end construction gives use from both cutting ends
- .1875" radius supports smooth rounded surface work
- ALTiN coating adds heat and wear resistance
- Handles finishing, blending, and curved pocket machining
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
