Product Overview

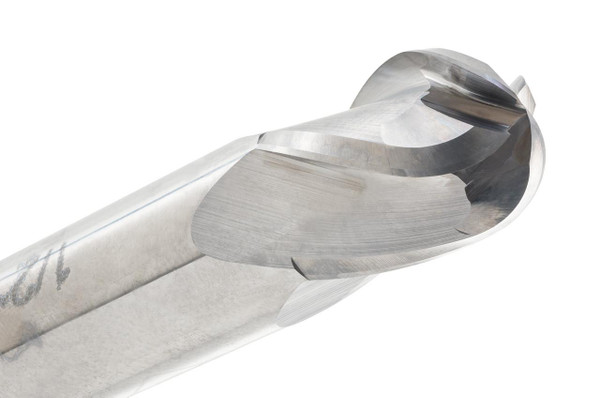

The CGS Tool 442-0469 is a 3/64" diameter 4-flute solid carbide ball end mill built specifically for very fine contour milling, with a double-end design that squeezes extra value out of a tool this small. It belongs to the 442 Series, CGS Tool's double-end miniature ball nose line.
What sets this tool apart is the .0234" radius, tiny even by miniature standards, meant for detailed blending and compact profile work that a standard-size tool can't reach. The double-end build means you get a second usable end once the first dulls, and it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 3/64"
- Shank: 1/8"
- Length of Cut (LOC): 3/32"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0234"
- Series: CGS 442 Series
- Part No: 442-0469
Key Performance Features:
- 4-flute ball end design for miniature contour milling
- Double-end construction gives use from both cutting ends
- .0234" radius supports very small rounded details
- 30° helix helps maintain controlled cutting action
- Handles fine finishing, blending, and small pocket work
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
