Product Overview

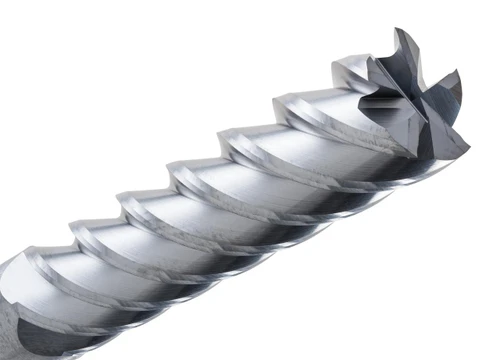

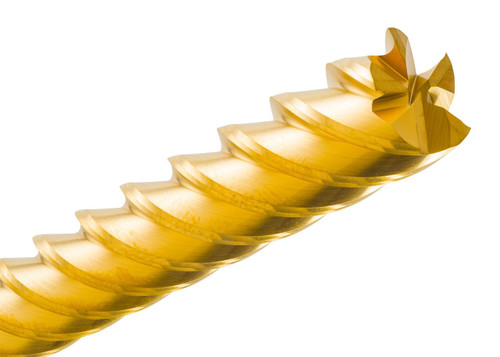

Built for high performance finish milling, this 5 flute square end mill delivers smooth cutting performance, superior surface finishes, and reliable cutting stability. The TiN coating helps reduce friction and tool wear while improving heat resistance and lubrication for extended tool life in demanding machining applications. Its 45° high helix design helps to improve chip evacuation and supports higher feed rates for efficient finishing operations.
Tool Specifications:
- Diameter: 5/32"
- Shank: 3/16"
- Length of Cut: 5/16"
- Overall Length: 2"
- Flutes: 5
- Style: Square End
- Coating: TiN
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features:
- 5-flute design provides smooth cutting and superior surface finishes.
- TiN coating improves wear resistance and extends tool life.
- Reduces friction for stable and consistent machining performance.
- Enhances heat resistance for reliable high-speed milling operations.
- High helix geometry promotes efficient chip evacuation.
- Supports higher feed rates for increased machining productivity.
- Solid carbide construction delivers strength and long-lasting durability.
- Maintains excellent stability during precision finishing applications.
