Product Overview

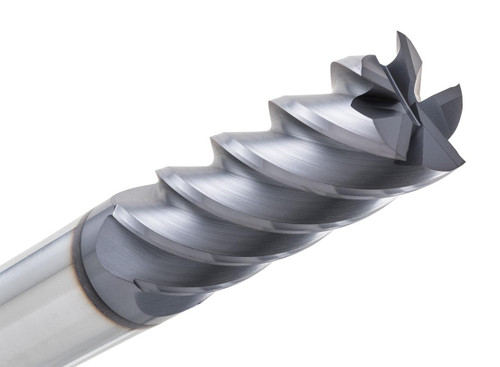

Engineered for high-performance finish milling and precision machining uses, designed to squeeze out superior surface finishes, and well, also it supports extreme feed rates when you’re running finishing operations. As a member of the 45000 Series Super Finisher, it blends advanced cutting geometry with premium solid carbide construction to deliver great accuracy, productivity, and overall surface quality.
The TiCN, which is Titanium Carbonitride, coating brings increased hardness, better wear resistance , and less friction, so the tool life tends to last longer even in demanding environments where chips and heat are both kind of intense. And that 45° high-helix geometry helps with chip evacuation; it reduces vibration , and it keeps the cutting action smooth and consistent across a pretty wide range of materials.
Tool Specifications:
- Diameter: 3/4"
- Shank Diameter: 3/4"
- Length of Cut: 1"
- Overall Length: 3"
- Flutes: 5
- Style: Square End
- Coating: TiCN
- Material: Solid Carbide
- Helix Angle: 45°
- Configuration: Single End
- Series: 45000 Series Super Finisher
- Part Number: 45040-TiCN
Key Performance Features:
- Ideal for finish milling, side milling, contouring, profiling, and high-feed finishing operations.
- Supports applications requiring superior surface quality and dimensional accuracy.
- Recommended for machining steels, stainless steels, cast iron, titanium, alloys, Inconel®, and select non-ferrous materials.
- 5-flute design helps deliver stable and consistent cutting performance.
- 45° high-helix geometry supports efficient chip evacuation.
- Helps improve productivity in precision CNC machining environments.
- A reliable choice for applications where finishing quality, accuracy, and machining stability are important.
