Product Overview

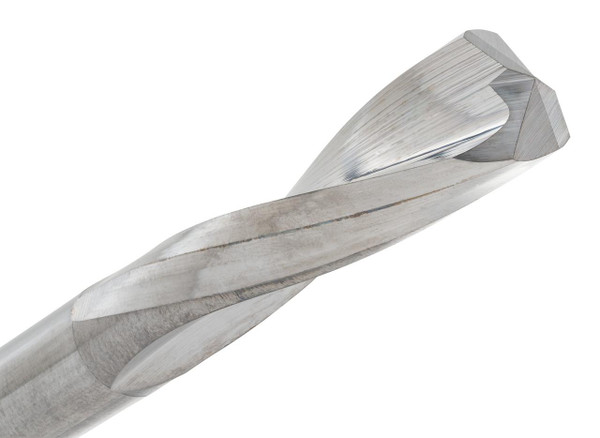

Clean, accurate drilling for shop and CNC production work, that's the 506-3750 at 3/8" diameter. This 2-flute solid carbide drill is built for jobs that need dependable entry, stable cutting, and repeatable hole quality run after run.
A 135° drill point and uncoated carbide body keep the design straightforward for standard drilling performance. With a 1-13/16" length of cut and 3-1/8" overall length, the 506-3750 offers useful reach while staying controlled throughout the cut.
Tool Specifications:
- Diameter: 3/8"
- Length of Cut (LOC): 1-13/16"
- Overall Length (OAL): 3-1/8"
- Flutes: 2 Flute
- Drill Point: 135°
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Solid Carbide Drills
- Part No: 506-3750
Key Performance Features:
- 2-flute solid carbide drill built for accurate hole-making
- 135° drill point supports clean, controlled entry
- 3/8" diameter suits practical production drilling
- 1-13/16" length of cut gives useful drilling reach
- Uncoated carbide body performs well in standard conditions
- Suited to repeatable CNC drilling and general shop use
