Product Overview

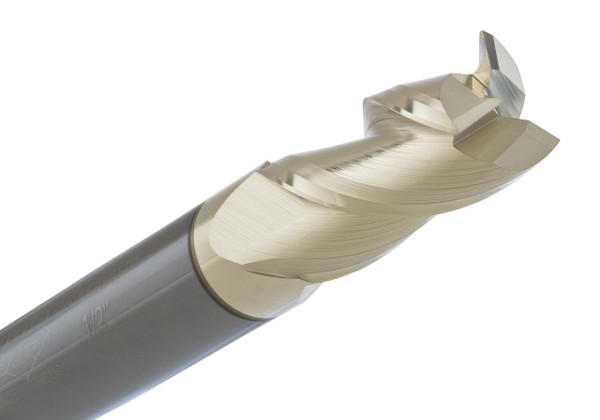

Small aluminum machining still needs a dedicated non-ferrous cutter, and the 5301-S provides one at 1/8" diameter. This 3-flute square end mill comes from the Ferocious 3x 5300 Series, built for small non-ferrous work where clean chip evacuation, smooth cutting, and a good surface finish are all important.
ZrN coating helps support cleaner cutting in aluminum-style applications, while the special flute design, wiper end geometry, variable helix, and variable pitch help reduce chatter and harmonics. It's a strong small-diameter option for aluminum, copper, brass, plastics, composites, and other non-ferrous materials.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 1-1/2"
- Flutes: 3 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ZrN
- Radius: No
- Series: Ferocious 3x 5300 Series
- Part No: 5301-S
Key Performance Features:
- 3-flute square end built for aluminum and non-ferrous milling
- ZrN coating supports cleaner cutting in aluminum
- Wiper end geometry improves overall surface finish
- Variable helix and pitch reduce chatter and harmonics
- Compact 1/8" size performs well in smaller features
- Suited to aluminum, copper, brass, plastics, and composites
