Product Overview

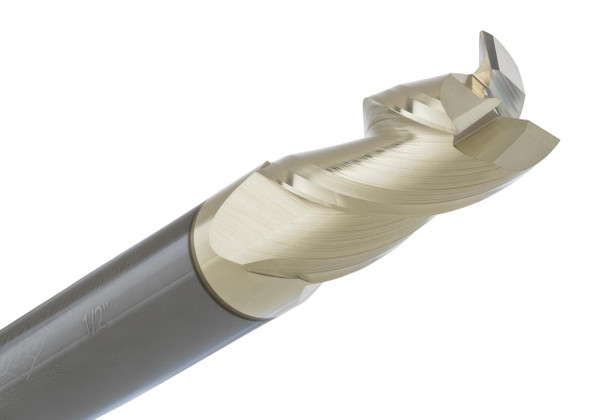

The CGS Tool 5339-S is a 1/2" diameter 3-flute solid carbide square end mill from the Ferocious 3x 5300 Series, built for aluminum and non-ferrous machining where strong chip evacuation and smooth finish need to hold up at higher feed rates.
The ZrN coating supports cleaner cutting in aluminum-focused work, while variable helix, variable pitch, and wiper end geometry help reduce chatter and harmonics. With a 2" length of cut and 4" overall length, this cutter gives useful reach for non-ferrous milling applications.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 2"
- Overall Length (OAL): 4"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: ZrN
- Radius: No
- Series: CGS Ferocious 3x 5300 Series
- Part No: 5339-S
Key Performance Features:
- Aluminum and non-ferrous milling handled by a 3-flute square end design
- ZrN coating supports cleaner aluminum cutting
- 2" LOC gives useful cutting reach
- Wiper end geometry improves surface finish
- Variable helix and variable pitch reduce chatter and harmonics
- Ideal for aluminum, copper, brass, non-ferrous metals, plastics, and composites
