Product Overview

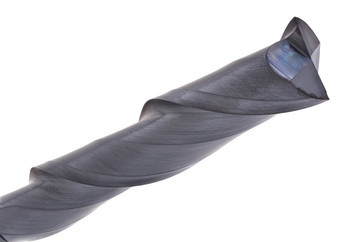

The CGS Tool 820-5000-ALTiN is a 1/2" diameter 2-flute solid carbide square end mill built for long-reach general-purpose milling, sized for deeper slots and extended profiles that need more length than a standard tool offers.
The ALTiN coating adds heat and wear resistance under tougher cutting conditions, and with a 3" length of cut and 6" overall length, this 820 Series cutter gives extended cutting depth for larger CNC features.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: CGS 820 Series
- Part No: 820-5000-ALTiN
Key Performance Features:
- Long-reach milling handled by a 2-flute square end design
- 3" LOC gives extended cutting depth
- ALTiN coating adds heat and wear resistance
- 6" OAL supports deeper machining access
- Suited to slots, profiles, plunge cuts, and side wall work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
