Product Overview

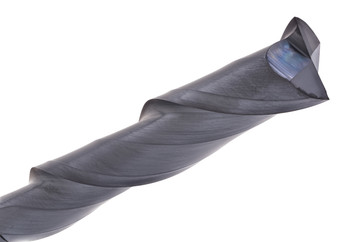

Deep general-purpose work benefits from both reach and coating, and the 820-7500-ALTiN combines both at 3/4" diameter. This 2-flute square end mill carries a 3" length of cut and 6" overall length, built for slots, side walls, and profiles that a shorter tool can't access.
The ALTiN coating adds protection against heat and wear, which becomes more relevant as reach increases and cutting conditions get tougher. With a 30° helix and single-end construction, this cutter handles mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites at depths a standard-length tool simply won't reach.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 2 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: 820 Series
- Part No: 820-7500-ALTiN
Key Performance Features:
- 2-flute square end built for long-reach milling
- 3" length of cut supports extended cutting depth
- ALTiN coating improves heat and wear resistance
- 30° helix supports smooth, controlled chip flow
- Handles slotting, profiling, plunging, and side wall milling
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
