Product Overview

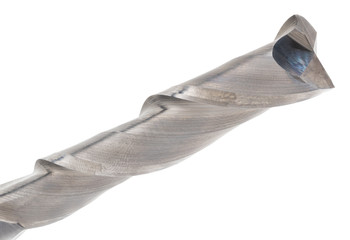

So the extended reach at 1/2" diameter is basically the job for the CGS Tool 820-5000, a 2 flute square end mill pulled from the long-reach 820 Series, built for deeper slots and extended profiles, plus a real good plunge work in the larger CNC features, even when things need that extra touch.
A 3" length of cut and 6" overall length give this tool the depth to handle deeper applications, and a 30° helix keeps chip movement smooth throughout. Uncoated carbide construction handles standard shop conditions across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Series: CGS 820 Series
- Part No: 820-5000
Key Performance Features:
- 2-flute square end built for long-reach milling
- 3" LOC adds extended cutting depth
- 6" OAL supports deeper machining access
- 30° helix keeps chip movement smooth
- Good for slots, profiles, plunge cuts, and side wall work
- Works in mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
