Product Overview

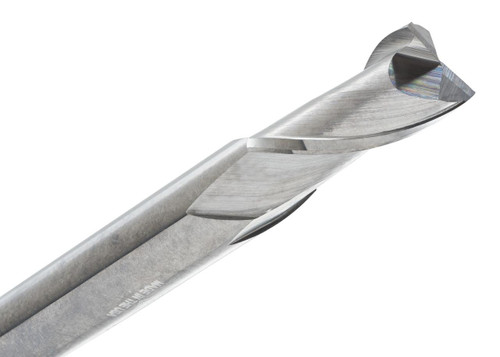

Deeper small slots need reach at a compact diameter, and the 820-1875 provides it at 3/16". This 2-flute square end mill is useful for compact profiles, plunge cuts, and side wall work where extra cutting depth is needed.
With a 1-1/8" length of cut and 3" overall length, this 820 Series cutter gives added reach in smaller machining features. Built with a 30° helix and uncoated carbide construction, it offers dependable performance across many common CNC materials.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 1-1/8"
- Overall Length (OAL): 3"
- Flutes: 2 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 820 Series
- Part No: 820-1875
Key Performance Features:
- 2-flute square end built for long-reach milling
- 1-1/8" length of cut gives extended cutting depth
- 30° helix supports smooth chip movement
- Handles slots, profiles, plunge cuts, and side wall work
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
