Product Overview

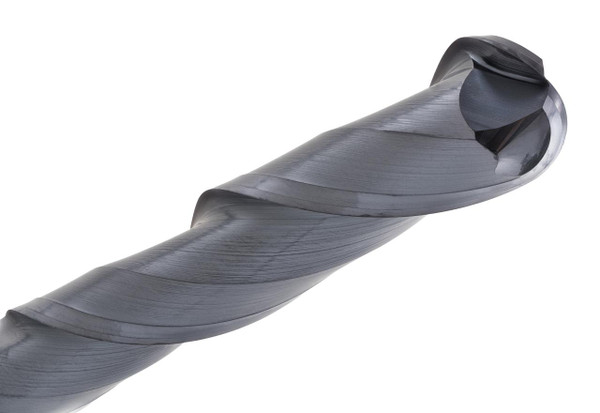

The CGS Tool 822-1875-ALTiN is a 3/16" diameter 2-flute solid carbide ball end mill made for long-reach contour work on small, deep features where a standard-length tool won't reach. Its .0938" radius gives a clean rounded cutting form for small curved pockets and surface blending.
The ALTiN coating helps manage heat and wear during tougher cutting, and with a 1-1/8" length of cut and 3" overall length, this 822 Series tool gives useful reach for smaller deep ball-end applications across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 1-1/8"
- Overall Length (OAL): 3"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0938"
- Series: CGS 822 Series
- Part No: 822-1875-ALTiN
Key Performance Features:
- Small, deep contour milling covered by a 2-flute ball end design
- .0938" radius handles small rounded surface work
- 1-1/8" LOC gives added cutting depth
- ALTiN coating adds heat and wear resistance
- Useful for profile, finishing, blending, and deeper pocket work
- Suited to mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
