Product Overview

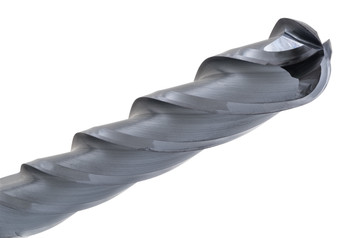

Small radius work at extended reach is a tricky combination, and the 842-1250-ALTiN handles it at 1/8" diameter. This 4-flute ball end mill carries a .0625" radius alongside a full 1" length of cut, built for fine rounded surfaces that need to reach deeper than a standard-length small tool allows.
ALTiN coating helps this cutter resist heat and wear during longer or more demanding cuts, which matters more as reach increases relative to diameter. With a 3" overall length and 30° helix, the 842-1250-ALTiN handles mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites without sacrificing control for reach.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0625"
- Series: 842 Series
- Part No: 842-1250-ALTiN
Key Performance Features:
- 4-flute ball end built for long-reach contour milling
- .0625" radius supports small, rounded features
- ALTiN coating improves heat and wear resistance
- 1" length of cut provides extended cutting reach
- Suited to finishing, blending, and small profile work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
