Product Overview

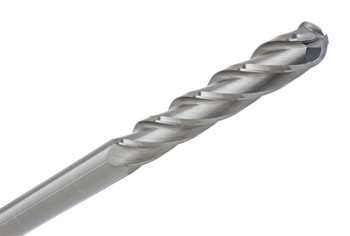

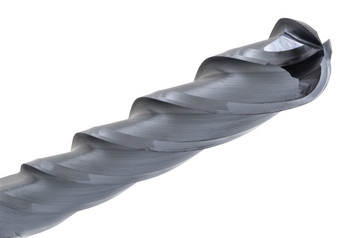

The CGS Tool 842-1000-ALTiN is a 1" diameter 4-flute solid carbide ball end mill built specifically for long-reach profile and contour work at a larger scale, where a broad radius needs to reach into a deeper feature. It belongs to the 842 Series, CGS Tool's extended-reach ball nose line.
What sets this tool apart is the .500" radius paired with a 3" length of cut — enough reach and enough rounding to handle large surface blends and curved pockets in one pass. The ALTiN coating helps the edge handle heat over that longer cutting length, and it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 1"
- Shank: 1"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .500"
- Series: CGS 842 Series
- Part No: 842-1000-ALTiN
Key Performance Features:
- 4-flute ball end design for long-reach contour milling
- .500" radius supports broad rounded surface work
- 3" LOC provides extended cutting depth
- ALTiN coating adds heat and wear resistance
- Handles finishing, blending, and deep pocket applications
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
