Product Overview

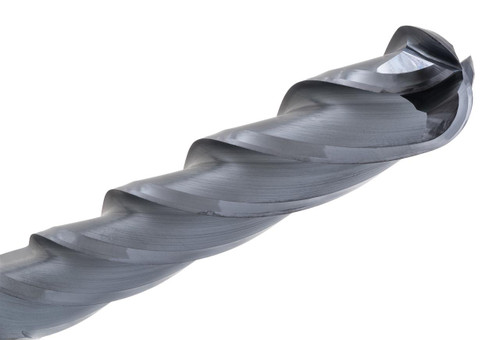

The CGS Tool 842-6250-ALTiN is a 5/8" diameter 4-flute solid carbide ball end mill from the 842 Series, sized for longer-reach profile and contour milling with a 3" length of cut and 6" overall length. It's built for deeper pockets and taller profiles.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .3125" radius matched to its diameter, with an ALTiN coating that helps the tool hold up in hotter or tougher cuts. Rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a strong fit for general-purpose milling.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .3125"
- Series: CGS General Purpose (842 Series)
- Part No: 842-6250-ALTiN
Key Performance Features:
- 4-Flute ball end design for long-reach contour milling
- Extended LOC matched to diameter for deep cutting capability
- ALTiN coating improves heat and wear resistance
- .3125" radius works well for larger rounded features
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
