Product Overview

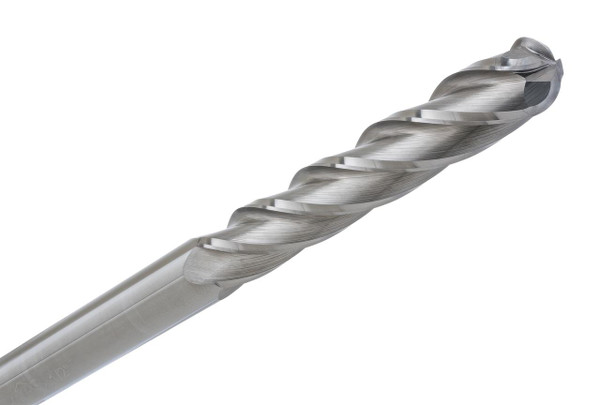

Taller profile features need a tool that can reach without that flexing, and 842-6250 is made for exactly that reach, it works good. This 5/8" diameter 4-flute ball end mill carries a full 6" overall length and a 3" length of cut, both aimed at deeper pockets and profile work that shorter tools can't access.
The .3125" radius rounds out larger surfaces cleanly, which matters on blending and finishing passes where a smaller radius would leave visible tool marks. With a 30° helix and uncoated solid carbide body, this 842 Series cutter handles mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites at the depth other tools simply can't reach.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .3125"
- Series: 842 Series
- Part No: 842-6250
Key Performance Features:
- 4-flute ball end built for long-reach contour milling
- 3" length of cut supports extended cutting depth
- .3125" radius produces smooth, larger rounded surfaces
- 30° helix keeps chip evacuation steady and controlled
- Suited to deep pockets, profile work, and finishing
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
