Product Overview

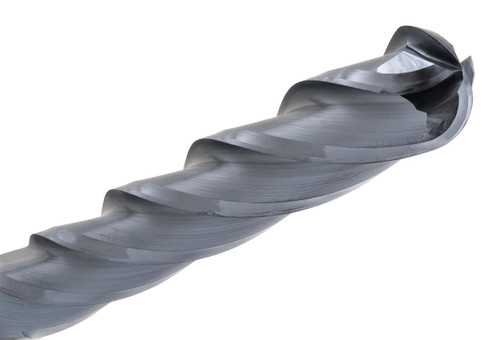

The CGS Tool 842-2500 is a 1/4" diameter 4-flute solid carbide ball end mill from the 842 Series, sized for contouring and deeper ball-end milling where a small cutter still needs extra reach. Its longer 1-1/2" length of cut is what separates it from a standard-depth version.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .125" radius matched to its diameter for simple, dependable everyday cutting. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it handles smoother radius cuts with ease.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .125"
- Series: CGS General Purpose (842 Series)
- Part No: 842-2500
Key Performance Features:
- 4-Flute ball end design for profile and contour milling
- Longer LOC matched to diameter for better reach
- .125" radius supports clean rounded surfaces
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
