Product Overview

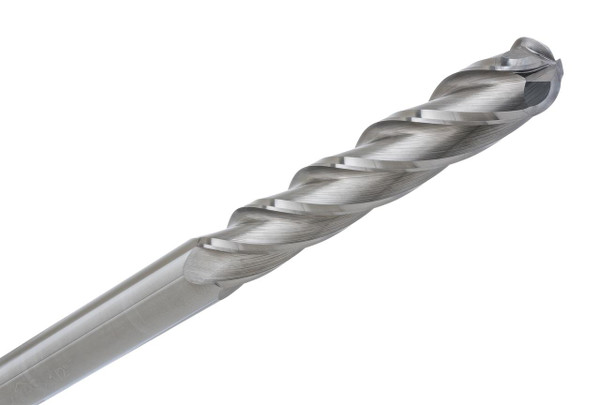

The CGS Tool 842-3750 is a 3/8" diameter, 4-flute solid carbide ball end mill made for those long reach profile jobs, and it uses a .1875" radius that helps produce a smooth, rounded cutting form for deeper curved pockets plus surface blending, basically.
With a 2" length of cut and a 4" overall length, it gives more reach while still keeping controlled ball end cutting, and the uncoated carbide body tends to do well across mild steels , stainless steel, cast iron, titanium, nonferrous metals, plastics, and even composites.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 2"
- Overall Length (OAL): 4"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1875"
- Series: CGS 842 Series
- Part No: 842-3750
Key Performance Features:
- Long-reach contour milling handled by a 4-flute ball end design
- .1875" radius supports smooth rounded surface work
- 2" LOC gives added cutting depth
- 30° helix helps maintain controlled chip movement
- Suited to finishing, blending, and deeper pocket work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
