Product Overview

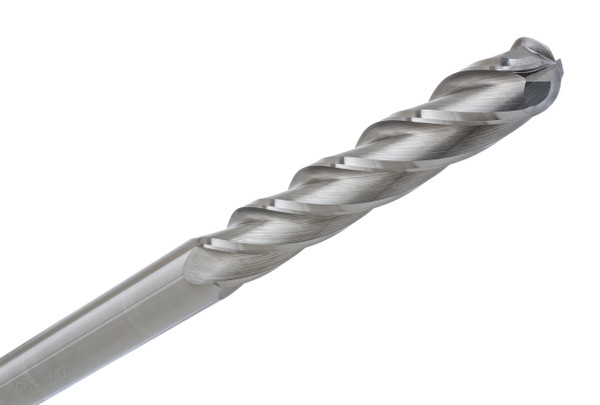

The CGS Tool 842-1875 is a 3/16" diameter 4-flute solid carbide ball end mill built specifically for long-reach profile and contour milling in smaller features that still need extra depth. It belongs to the 842 Series, CGS Tool's extended-reach ball nose line.
What sets this tool apart is the 1-1/8" length of cut, giving added reach at a diameter where most tools would run out of usable depth fast. The .0938" radius keeps the finish smooth in compact curved features, and running a 30° helix, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 1-1/8"
- Overall Length (OAL): 3"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0938"
- Series: CGS 842 Series
- Part No: 842-1875
Key Performance Features:
- 4-flute ball end design for long-reach contour milling
- .0938" radius supports compact rounded features
- 1-1/8" LOC gives added cutting depth
- 30° helix helps maintain smooth cutting control
- Handles finishing, blending, and deeper pocket work
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
