Product Overview

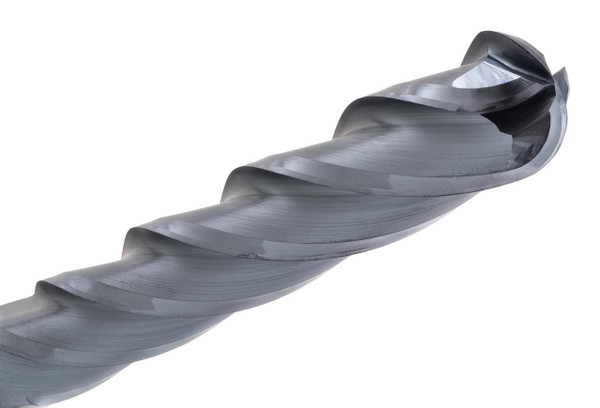

The CGS Tool 842-1875-ALTiN is a 3/16" diameter 4-flute solid carbide ball end mill built for long-reach contour work on smaller, deeper features. A .0938" radius keeps the cutting form compact enough for pocket blending and detail work even at extended reach.
The ALTiN coating protects the cutting edge through more demanding applications, and with a 1-1/8" length of cut and 3" overall length, this 842 Series cutter adds reach for smaller deep features across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut (LOC): 1-1/8"
- Overall Length (OAL): 3"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0938"
- Series: CGS 842 Series
- Part No: 842-1875-ALTiN
Key Performance Features:
- Long-reach contour milling handled by a 4-flute ball end profile
- .0938" radius keeps compact rounded feature work controlled
- 1-1/8" LOC adds useful cutting depth
- ALTiN coating improves heat and wear resistance
- Good for finishing, blending, and deeper pocket work
- Suited to mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
