Product Overview

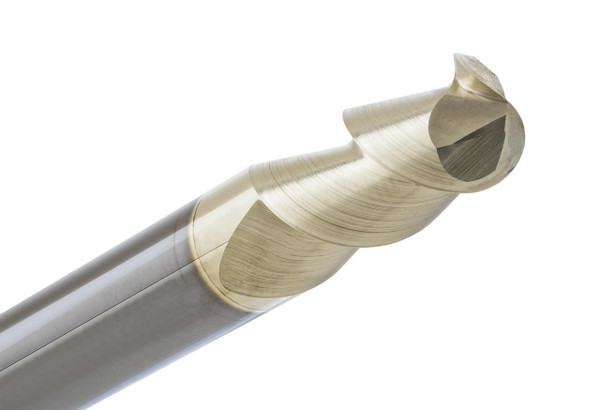

The CGS Tool BN2030-S comes in a 1/2” diameter, 2-flute solid carbide ball end mill made for high-speed machining in aluminum, non-ferrous metals, plastics, and composites, basically it’s built to keep things moving fast. It’s part of the BN2000 Series, the Ferocious line, and it’s meant to deliver strong material removal rates with smooth surface finishes, plus steady performance when you’re running demanding CNC milling.
Made from premium solid carbide, the BN2030-S shows CGS Tool’s original 55° high helix geometry, which helps with chip evacuation and also keeps cutting forces lower. The precision-ground ball end shape works great for contouring, profiling, and that 3D surface machining stuff, not just one operation. With a ZrN coating it helps reduce built-up edge, and that can extend tool life especially in aluminum and other non-ferrous materials. The advanced geometry also supports aggressive feed rates, improving machining efficiency in a pretty consistent way.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 3”
- Flutes: 2 - Ball End
- Radius: .250”
- Material: Solid Carbide
- Coating: ZrN
- Series: BN2000 Series Ferocious
- Part No: BN2030-S
Key Performance Features:
- 2-Flute ball end design for contouring and 3D machining applications
- Original 55° high helix geometry for superior chip evacuation
- ZrN coating helps reduce material buildup and improve tool life
- Supports high chip loads and aggressive feed rates
- Excellent surface finish in aluminum and non-ferrous materials
- Ideal for profiling, finishing, and complex surface machining
- Delivers reliable performance in plastics and composite materials
- Engineered for high-speed CNC milling and efficient material removal
