Product Overview

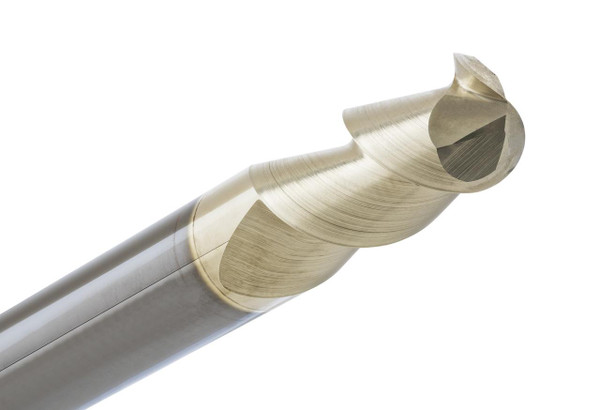

The CGS Tool BN2048 comes in a 5/8” diameter, 2 flute solid carbide ball end mill meant for high speed machining in aluminum , non ferrous metals, plastics and composites. It sits inside the BN2000 Series Ferocious, and it keeps giving exceptional material removal rates, smooth finishing, and dependable operation in those tougher CNC milling jobs where you really need it.
Made from solid carbide, premium grade really , the BN2048 uses CGS Tool’s own 55° high helix geometry so chips clear out efficiently and cutting forces stay lower. The precision ground ball end form works great for contouring, profiling, and 3D surface work, while the uncoated cutting edges help cut down on material buildup . That way you maintain clean cutting performance in aluminum and other non ferrous materials too.
Tool Specifications:
- Diameter: 5/8”
- Shank: 5/8”
- Length of Cut (LOC): 1-1/4”
- Overall Length (OAL): 3-1/2”
- Flutes: 2 - Ball End
- Radius: .3125”
- Material: Solid Carbide
- Coating: ZrN
- Series: BN2000 Series Ferocious
- Part No: BN2048-S
Key Performance Features:
- 2-Flute ball end design for contouring and 3D machining applications
- Original 55° high helix geometry for superior chip evacuation
- ZrN coating helps reduce material buildup and improve tool life
- Supports high chip loads and aggressive feed rates
- Excellent surface finish in aluminum and non-ferrous materials
- Ideal for profiling, finishing, and complex surface machining
- Delivers reliable performance in plastics and composite materials
- Engineered for high-speed CNC milling and efficient material removal
