Product Overview

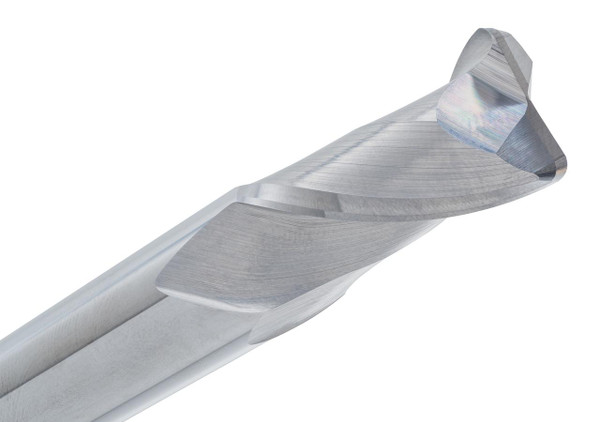

A little extra corner support goes a long way on general-purpose jobs, and that's the whole idea behind the CR123-2500.015. This 1/4" diameter 2-flute corner radius end mill gives machinists more chip room than a 4-flute tool while adding a .015" radius to protect the corner from premature wear.
It's a straightforward cutter, 30° helix, single-end, uncoated, built for shops that don't need anything exotic but still want a bit more edge life than a sharp-cornered tool would provide. Slotting, profiling, shoulder work, and side wall milling are all well within reach across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .015"
- Series: CR123 Series
- Part No: CR123-2500.015
Key Performance Features:
- 2-flute corner radius design adds extra edge support
- .015" radius helps protect against sharp-corner wear
- 30° helix supports smooth general-purpose cutting
- Handles slotting, profiling, and shoulder milling well
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
