Product Overview

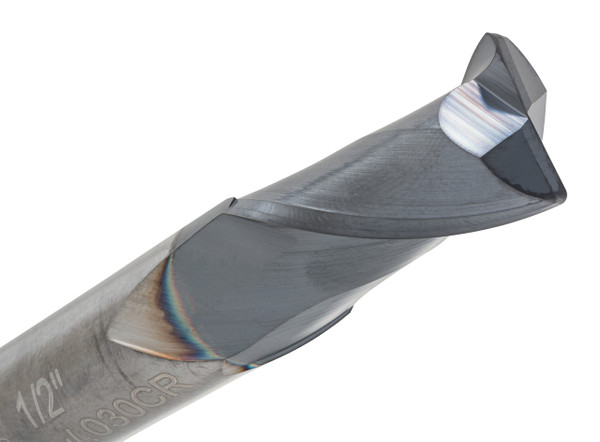

The CGS Tool CR123-5000.015-ALTiN is a 1/2" diameter 2-flute solid carbide corner radius end mill built specifically for general-purpose milling where a small radius adds meaningful corner strength at a mid-size diameter. It belongs to the CR123 Series, CGS Tool's corner radius line.
What sets this tool apart is the .015" radius keeping the profile essentially square while still protecting the corner, backed by an ALTiN coating for the tougher cutting conditions. Running a 30° helix in a single-end build, it handles slotting, profiling, shoulder work, and side wall milling.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 2 - Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .015"
- Series: CR123 Series
- Part No: CR123-5000.015-ALTiN
Key Performance Features:
- 2-flute corner radius design for general-purpose milling
- .015" radius helps reduce sharp-corner wear
- ALTiN coating adds heat and wear resistance
- 30° helix gives smooth cutting control
- Handles slotting, profiling, shoulder work, and side wall milling
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
