Product Overview

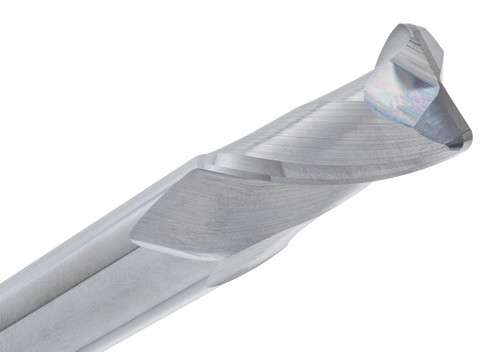

Reduced corner wear with a coating boost — the CGS Tool CR123-6250.020-ALTiN is a 5/8" diameter 2-flute corner radius end mill from the CR123 Series built for slotting, profiling, and pocketing where edge protection matters.
A .020" radius shields the edge from premature wear without losing cutting accuracy, and ALTiN coating adds heat resistance during more demanding conditions. Solid carbide construction handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 1-1/4"
- Overall Length (OAL): 3-1/2"
- Flutes: 2 - Corner Radius
- Corner Radius: .020"
- Material: Solid Carbide
- Coating: ALTiN
- Helix: 30°
- Design: Single End
- Series: CGS CR123 Series
- Part No: CR123-6250.020-ALTiN
Key Performance Features:
- 2-flute corner radius design improves chip clearance and edge strength
- .020" radius helps reduce sharp-corner wear and chipping
- ALTiN coating helps improve heat resistance and tool life
- 30° helix supports smooth cutting and controlled chip evacuation
- Solid carbide construction provides rigidity during milling
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for slotting, profiling, pocketing, and general-purpose stock removal
