Product Overview

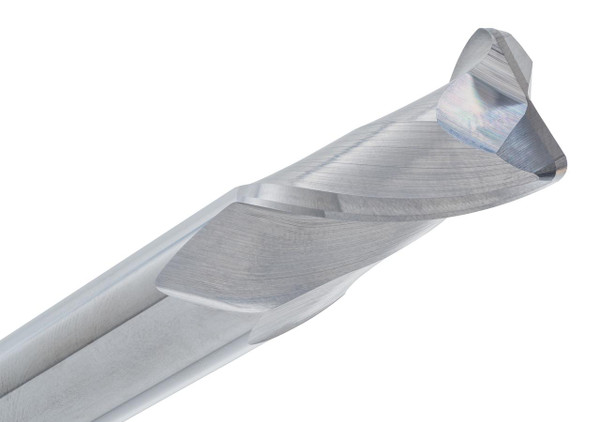

Corner protection on a bigger diameter, it’s basically the job for the CGS Tool CR123-6250020. This is a 5/8" diameter 2-flute corner radius end mill, from the CR123 Series, made for slotting and profiling , where the reduced corner wear keeps paying back over time.
A .020" radius shields the cutting edge from chipping without giving up cutting accuracy, and 2-flute geometry gives enough chip space to keep things steady. Uncoated carbide handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 1-1/4"
- Overall Length (OAL): 3-1/2"
- Flutes: 2 - Corner Radius
- Corner Radius: .020"
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Series: CGS CR123 Series
- Part No: CR123-6250020
Key Performance Features:
- 2-flute corner radius design improves edge strength and chip clearance
- .020" corner radius helps reduce sharp-corner wear
- 30° helix supports smooth cutting and consistent chip flow
- Solid carbide construction provides rigidity during milling
- Uncoated finish suited for flexible general-purpose machining
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for slotting, profiling, pocketing, and general milling operations
