Product Overview

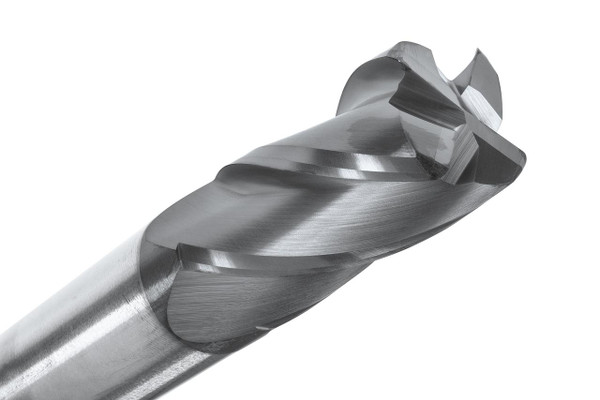

General purpose milling with reinforced corner strength, kinda like the CR143-6250.020-ALTiN, at 5/8" diameter. This 4 flute corner radius end mill has a .020" radius, and it strengthens the cutting edge while still keeping the machined corners clean, nice and controlled. The ALTiN coating helps push better heat and wear resistance when you’re in more demanding milling situations.
With a 1-1/4" length of cut and a 3-1/2" overall length, plus a 30° helix angle, this CR143 series cutter is handy for profiling, shoulder milling, side wall work, and those radius corner applications where you really want accuracy and consistency.
Tool Specifications:
- Diameter: 5/8"
- Shank: 5/8"
- Length of Cut (LOC): 1-1/4"
- Overall Length (OAL): 3-1/2"
- Flutes: 4 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .020"
- Series: CR143 Series
- Part No: CR143-6250.020-ALTiN
Key Performance Features:
- 4-flute corner radius design built for general-purpose milling
- .020" radius helps reduce sharp-corner wear
- ALTiN coating supports better heat and wear resistance
- 30° helix provides steady cutting control
- Handles profiling, shoulder milling, and side wall work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
