Product Overview

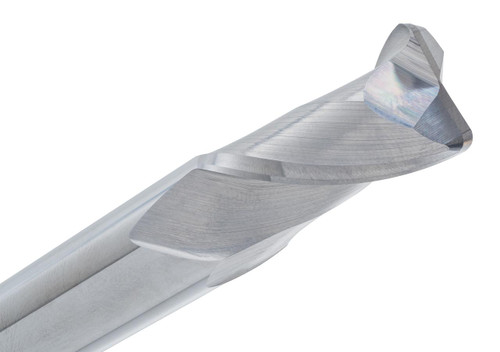

General-purpose milling with a bit of extra corner support, that's what the CR123-5000.030-ALTiN offers at 1/2" diameter. This 2-flute corner radius end mill carries a .030" radius, giving the cutting edge added support while keeping the finished profile clean and controlled.
ALTiN coating helps improve heat and wear resistance in tougher machining conditions, useful on jobs that push past what a bare carbide tool would tolerate as comfortably. With a 1" length of cut, 3" overall length, and 30° helix, this CR123 Series cutter handles slotting, profiling, shoulder work, and side wall milling without any special setup.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 2 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .030"
- Series: CR123 Series
- Part No: CR123-5000.030-ALTiN
Key Performance Features:
- 2-flute corner radius design suited to general-purpose milling
- .030" radius helps reduce sharp-corner wear
- ALTiN coating supports better heat and wear resistance
- 30° helix gives smooth cutting control
- Handles slotting, profiling, shoulder work, and side wall milling
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
