Product Overview

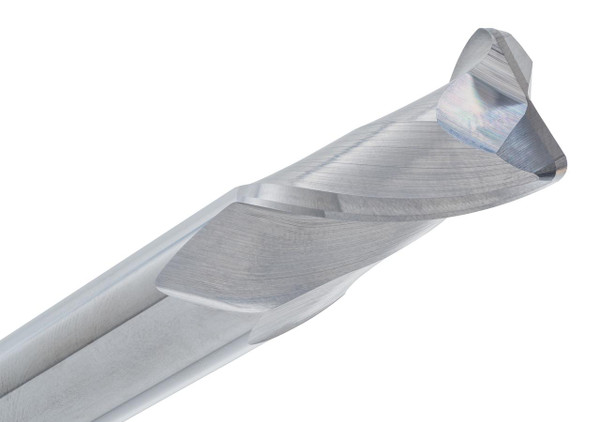

The general purpose milling thing with chip clearance and corner protection at the same time, thats what the CR123-5000.060 is all about for a 1/2" diameter setup. This 2 flute corner radius end mill has a .060" radius, it keeps the cutting edge guarded while still giving you a clean and controlled corner profile.
It also comes with a 30° helix and an uncoated solid carbide body , so the CR123 series cutter delivers dependable output in everyday CNC work. You can use it for slotting, profiling , shoulder milling, and side wall applications through mild steel, stainless steel, cast iron, titanium, non ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 2 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .060"
- Series: CR123 Series
- Part No: CR123-5000.060
Key Performance Features:
- 2-flute corner radius design adds extra edge support
- .060" radius helps reduce corner wear
- 30° helix supports smooth, general-purpose cutting
- Handles slotting, profiling, shoulder work, and side wall milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
