Product Overview

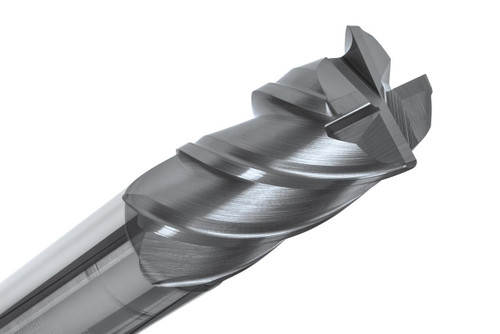

The CGS Tool CR143-2500.030 is a 1/4" diameter 4-flute solid carbide corner radius end mill from the CR143 Series, sized for milling work where a little added edge strength makes a real difference. Its .030" radius protects the cutting corner while keeping the part geometry crisp.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix matched to its diameter for dependable general-purpose cutting. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it suits profiling, shoulder work, and radius-corner applications well.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .030"
- Series: CGS CR143 Series
- Part No: CR143-2500.030
Key Performance Features:
- 4-Flute corner radius design for stronger edge support
- .030" radius matched to diameter reduces sharp-corner wear
- 30° helix with precision-ground cutting edges
- Single-end solid carbide construction
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
