Product Overview

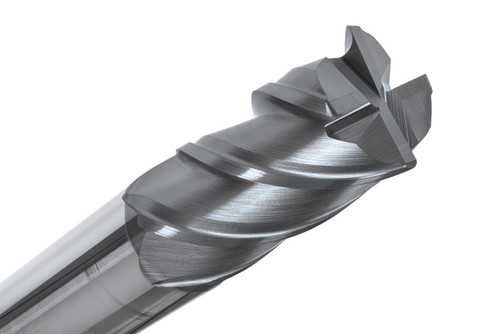

Larger milling applications need a stronger cutting corner, and the CR143-7500.060 provides one at 3/4" diameter. This 4-flute corner radius end mill carries a .060" radius, strengthening the cutting edge while keeping machined corners clean and controlled.
With a 1-1/2" length of cut and 4" overall length, this CR143 Series cutter gives practical reach for larger milling applications. Built with a 30° helix and uncoated carbide body, it's useful for profiling, shoulder milling, side wall work, and radius-corner machining.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 4 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .060"
- Series: CR143 Series
- Part No: CR143-7500.060
Key Performance Features:
- 4-flute corner radius design built for general-purpose milling
- .060" radius helps reduce sharp-corner wear
- 3/4" diameter supports larger stock removal
- 30° helix provides steady cutting control
- Handles profiling, shoulder milling, and side wall work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
