Product Overview

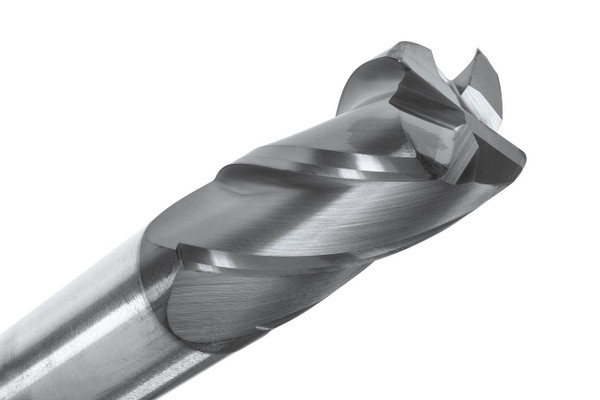

Heavier general-purpose milling with a strengthened corner, that's the CR143-7500.125-ALTiN at 3/4" diameter. This 4-flute corner radius end mill carries a .125" radius, adding real strength to the cutting edge where sharp corners are more likely to wear or chip.
ALTiN coating helps this cutter handle heat and wear in tougher machining conditions, useful on jobs that push past what a smaller radius tool would comfortably tolerate. With a 30° helix, 1-1/2" length of cut, and single-end construction, this CR143 Series tool handles profiling, shoulder work, side wall milling, and radius-corner applications reliably.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 4 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .125"
- Series: CR143 Series
- Part No: CR143-7500.125-ALTiN
Key Performance Features:
- 4-flute corner radius design adds extra edge strength
- .125" radius helps reduce corner chipping and wear
- ALTiN coating improves heat and wear resistance
- 30° helix supports smooth, general-purpose cutting
- Handles profiling, shoulder milling, and side wall work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
