Product Overview

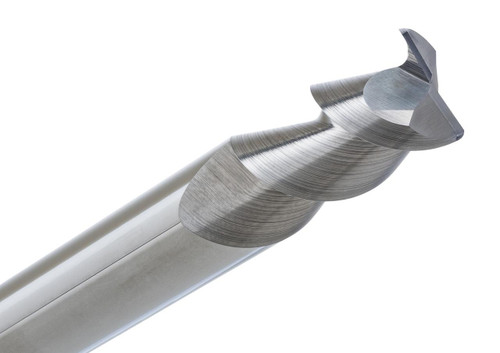

The CGS Tool CR2036.090-S is a 1/2” diameter, 2 flute solid carbide corner radius end mill, meant for high speed machining on aluminum, non ferrous metals, plastics, and composites. As part of the CR2000 Series Ferocious, it gives strong cutting performance , better edge durability, and really good surface finishes for precision CNC milling.
Made from premium solid carbide, the CR2036.090-S has CGS Tool’s own 55° high helix geometry, which helps with chip evacuation and keeps cutting forces lower. The corner radius form also boosts durability, because it reduces stress concentration right at the cutting edge. That can mean less chipping, and a cleaner finish overall. Then the ZrN coating adds more wear resistance, helps limit built up edge, and stretches tool life when working with aluminum and other non ferrous materials.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 1-1/2”
- Overall Length (OAL): 3-1/2”
- Flutes: 2 - Corner Radius
- Radius: .090”
- Material: Solid Carbide
- Coating: ZrN
- Series: CR2000 Series Ferocious
- Part No: CR2036.090-S
Key Performance Features:
- 2-flute corner radius design for improved edge strength and durability.
- Original 55° high helix geometry for smooth cutting and efficient chip evacuation.
- ZrN coating enhances wear resistance and reduces built-up edge.
- Extended tool life in aluminum and non-ferrous machining applications.
- Ideal for aluminum, copper, brass, plastics, and composites.
- Excellent for contouring, profiling, and finishing operations.
- Produces superior surface finishes compared to uncoated tools.
- Engineered for stable and consistent CNC machining performance.
