Product Overview

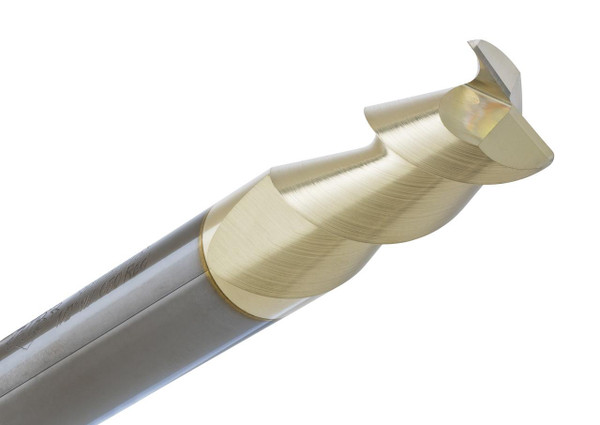

The CGS Tool CR2057.125-S comes as a 3/4” diameter, 2 flute solid carbide corner radius end mill, made for high-speed machining on aluminum, non-ferrous metals, plastics and composite materials. And part of the CR2000 Serie the Ferocious lineup, it’s set up to give sharp cutting performance, better edge durability, and a cleaner surface finish, even when the CNC milling work gets demanding
Built from premium solid carbide, the CR2057.125-S shows CGS Tool’s own 55° high helix geometry, kind of helping with rapid chip evacuation, lowering cutting forces, and supporting those more aggressive feed rates. The .125" corner radius kind of “reinforces” the cutting edge, so you get less chipping and longer tool life, while still holding tight dimensional accuracy. Also the ZrN coating adds wear resistance, cuts down built-up edge formation, and keeps machining performance stable across aluminum and other non-ferrous materials
Tool Specifications:
- Diameter: 3/4”
- Shank: 3/4”
- Length of Cut (LOC): 1-1/2”
- Overall Length (OAL): 4”
- Flutes: 2 - Corner Radius
- Radius: .125”
- Material: Solid Carbide
- Coating: ZrN
- Series: CR2000 Series Ferocious
- Part No: CR2057.125-S
Key Performance Features:
- 2-flute corner radius design for enhanced edge strength and durability.
- Original 55° high helix geometry for superior chip evacuation and smooth cutting action.
- ZrN coating improves wear resistance and minimizes built-up edge formation.
- .125" corner radius helps reduce edge chipping and extend tool life.
- Optimized for aluminum, copper, brass, plastics, and composite materials.
- Excellent for profiling, contouring, slotting, and finishing operations.
- Supports high-speed machining and aggressive feed rates.
