Product Overview

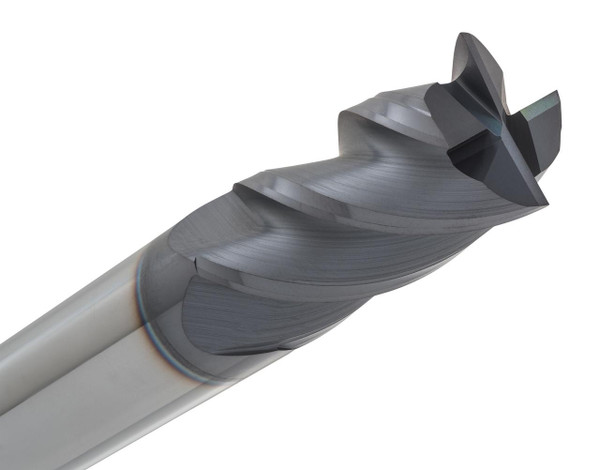

The CGS Tool HV140-4375 has a 7/16” diameter, 4 flute solid carbide square end mill and it’s meant for high performance machining in steels and alloys. It comes from the Hi-Velocity (HV) Series but honestly it feels built to do more than just run, it gives that strong combo of strength, speed and precision for roughing, and also for finishing.
Made from premium micro-grain carbide , the HV140-4375 has a variable helix plus variable index geometry, then it’s finished with an ALTiN coating so heat resistance stays strong and tool life holds up at high RPM. The free-cutting design helps with surface finish and chip evacuation, it also keeps vibration and wear lower, so machinists can push the feeds and speeds even further, without giving up accuracy.
Tool Specifications:
- Diameter: 7/16”
- Shank: 7/16”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 2-3/4”
- Flutes: 4 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ALTiN (Aluminum Titanium Nitride)
- Series: CGS Hi-Velocity (HV)
- Part No: HV140-4375
Key Performance Features:
- Variable Helix & Index for smoother, quieter cutting
- ALTiN coating for superior oxidation resistance
- Exceptional performance at high RPMs
- Improved surface finish on steels, stainless steels, and hardened materials
- Ideal for slotting, profiling, and finishing operations
- Reduced neck & Weldon flats available upon request
