Product Overview

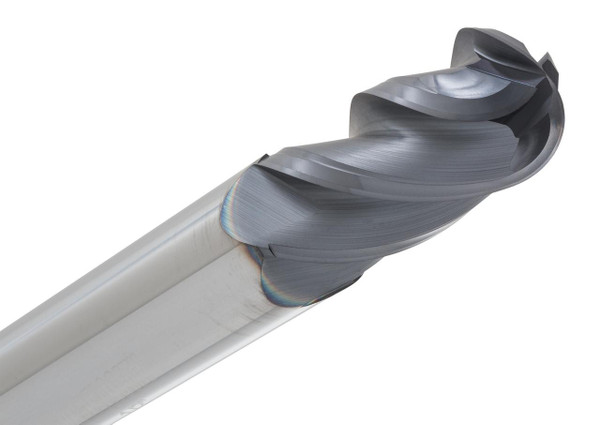

The CGS Tool HV742-2500 has a 1/4” diameter, 4-flute solid carbide ball end mill made for high-performance machining in steels + different alloys. It comes out of the Hi-Velocity (HV) Series so you get this serious mix of strength, pace, and precision whether you are doing heavy stock removal or the finishing stuff.
Built with premium micro-grain carbide the HV742-2500 has a variable helix and a variable index geometry and it runs with an ALTiN coating. That combination gives strong heat resistance and better tool life especially when you’re spinning at high RPM. Then there's the free-cutting style, it helps the surface look better and it also helps chips move out cleanly while cutting down on chatter, and general wear, so machinists can push feeds and speeds farther along without losing accuracy.
Tool Specifications:
- Diameter: 1/4”
- Shank: 1/4”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 2-1/2”
- Flutes: 4 - Ball End
- Material: Solid Micro-Grain Carbide
- Coating: ALTiN (Aluminum Titanium Nitride)
- Series: CGS Hi-Velocity (HV)
- Part No: HV742-2500
Key Performance Features:
- Variable Helix & Index for smoother, quieter cutting
- ALTiN coating for superior oxidation resistance
- Exceptional performance at high RPMs
- Improved surface finish on steels, stainless steels, and hardened materials
- Ideal for slotting, profiling, and finishing operations
- Reduced neck & Weldon flats available upon request
