Product Overview

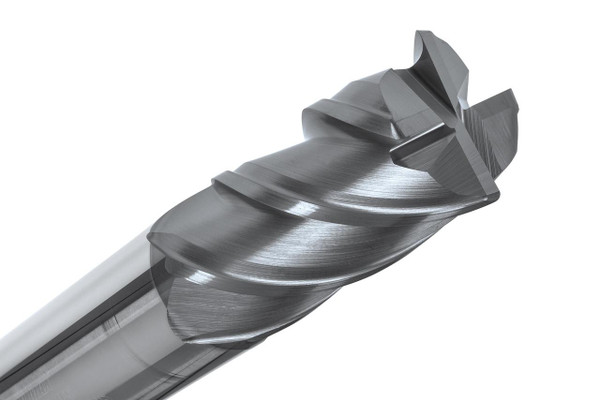

The CGS Tool MX143-5001.090, is basically a 1/2” diameter, 4 flute solid-carbide corner radius end mill, made for those demanding machining jobs where you’re working with hardened steels, stainless steels , cast iron , titanium, Inconel, Hastelloy and other kinds of exotic alloys. And since it’s in the VMAX MX143 Series, it tends to keep machining stable, give better surface finishes too, plus it helps with longer tool life during high-performance CNC milling, or so it’s meant to do.
On the MX143-5001.090 side of things, it uses advanced variable helix and variable pitch geometry, which in practice reduces chatter and cutting harmonics, so you get a smoother cut and more efficient material removal. Then the premium nACRo coating adds strong heat and wear resistance, while the .090” corner radius basically reinforces the cutting edge for improved reliability, especially when you’re doing aggressive milling applications.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 1-1/4”
- Overall Length (OAL): 3”
- Flutes: 4 - Corner Radius
- Corner Radius: .090”
- Material: Solid Carbide
- Coating: nACRo High Performance
- Series: CGS VMAX MX143
- Part No: MX143-5001.090
Key Performance Features:
- Variable helix geometry helps improve machining stability.
- Variable pitch design reduces chatter and cutting vibration.
- .090” corner radius enhances edge strength for heavy-duty milling.
- nACRo coating delivers excellent thermal and wear protection.
- Supports smoother cutting action and better surface finish quality.
- Optimized for titanium, stainless steel, and hardened alloys.
- Built for precision CNC milling and long-lasting cutting performance.
