Product Overview

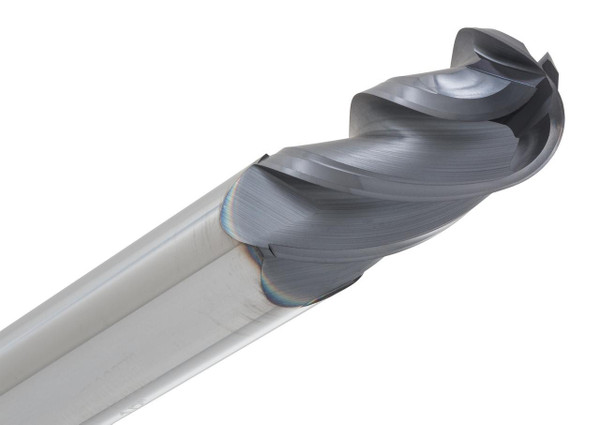

HV742-7500: HI VELOCITY BALL END 4FL 3/4" DIA 2-1/4" LOC 5" OAL w/ALTiN COATING
Product Overview:
CGS Tool HV742-7500. 3/4" diameter, 4-flute, solid carbide Ball End mill. Steels and alloys. Hi-Velocity (HV) Series. Roughing or finishing — handles both. Micro-grain carbide. Variable helix and variable index geometry. Chatter and harmonics stay low, ALTiN coating Heat managed at high RPM. Chip evacuation clean. Surface finishes consistent. Feeds and speeds run higher. Accuracy holds.
Tool Specifications:
Diameter: 3/4"
Shank: 3/4"
Length of Cut (LOC): 2-1/4"
Overall Length (OAL): 5"
Flutes: 4 – Ball End
Material: Solid Micro-Grain Carbide
Coating: ALTiN (Aluminum Titanium Nitride)
Series: CGS Hi-Velocity (HV)
Part No: HV742-7500
Key Performance Features:
- Variable Helix & Index — chatter down, harmonics reduced, feed rates and tool life up.
- ALTiN coating — holds against oxidation at high temperatures.
- Cuts steels, stainless steels, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
- Slotting, profiling, finishing operations.
- Reduced neck & Weldon flats available upon request.
