Product Overview

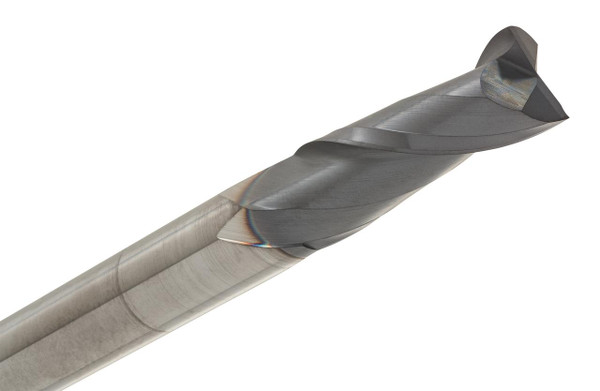

Compact, general purpose milling still needs a dependable cutter. And the 120-1250-ALTiN gives you one with that 1/8" diameter. This 2-flute square end mill is actually useful for small slots, light profiles, plunge cutting, side wall work, and clean flat bottom machining, when a controlled cut is needed.
The ALTiN coating helps improve heat resistance as well as wear resistance during tougher cutting scenarios . With a 1/2" length of cut, 1-1/2" overall length, and a 30° helix, this 120 Series cutter delivers steady square end performance in smaller CNC features.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: 120 Series
Part No: 120-1250-ALTiN
Key Performance Features:
- 2-flute square end built for compact general-purpose milling
- 1/8" diameter supports small slots and profiles
- ALTiN coating improves heat and wear resistance
- 30° helix supports smooth chip movement
- Handles slotting, profiling, plunging, and side wall milling
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
