Product Overview

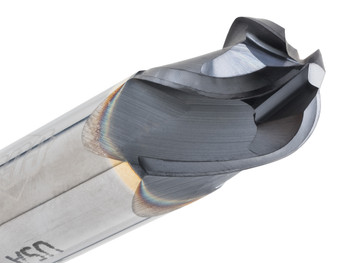

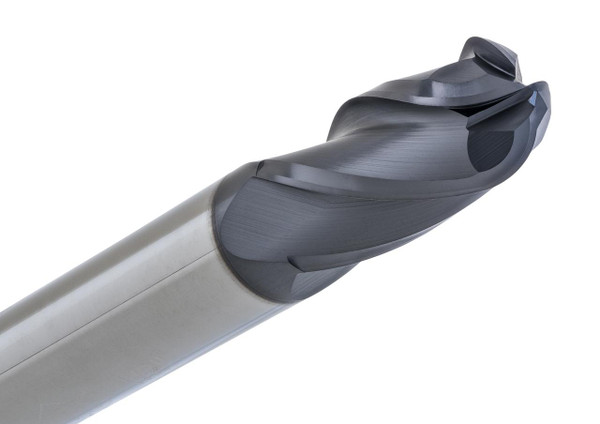

The CGS Tool 142-1094-ALTiN is a 7/64" diameter 4-flute solid carbide ball end mill built for small contour work where a .0547" radius produces exactly the fine rounded form a compact feature needs.
The ALTiN coating adds heat and wear resistance during tougher cutting conditions, and with a 3/8" length of cut and 1-1/2" overall length, this 142 Series cutter gives controlled ball-end performance in small CNC features across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 7/64"
- Shank: 1/8"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0547"
- Series: CGS 142 Series
- Part No: 142-1094-ALTiN
Key Performance Features:
- Small contour milling handled by a 4-flute ball end design
- .0547" radius supports fine rounded feature work
- ALTiN coating adds heat and wear resistance
- 30° helix gives controlled, general-purpose cutting
- Suited to finishing, blending, and small pocket machining
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
