Product Overview

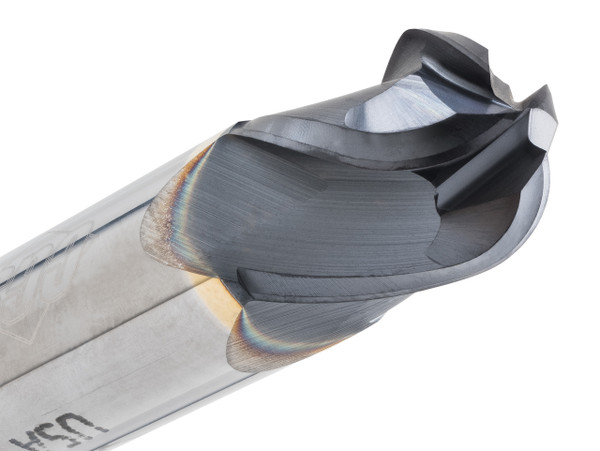

Detail work at a small scale gets a double-end option in the CGS Tool 442-1094-ALTiN, a 7/64" diameter 4-flute ball end mill from the 442 Series built for fine contouring and finishing where compact tool size is non-negotiable.
The ball nose profile keeps curved surfaces smooth, and ALTiN coating protects the small edge from heat and wear. With a 1/8" shank and two usable cutting ends, this tool runs across mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 7/64"
- Shank: 1/8"
- Length of Cut (LOC): 5/32"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Helix: 30°
- Design: Double End
- Series: CGS 442 Series
- Part No: 442-1094-ALTiN
Key Performance Features:
- 4-flute ball end design for detailed contouring and finishing work
- Double-end design gives two usable cutting ends for added tool value
- ALTiN coating helps improve heat resistance and edge protection
- 30° helix supports smooth cutting in compact milling applications
- Solid carbide construction improves rigidity and precision
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for 3D profiling, mold details, radius milling, and finishing passes
