Product Overview

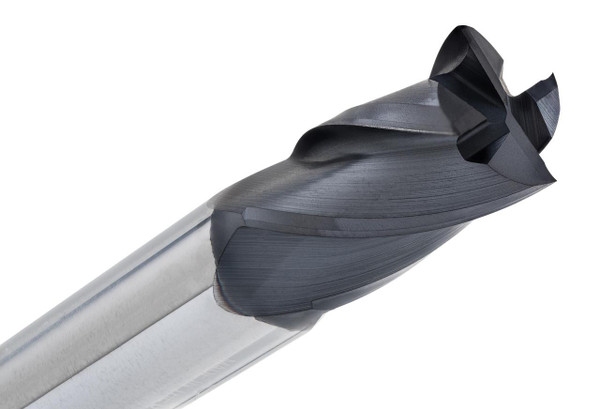

Small precision milling with a bit of coating protection, that's the 440-1094-ALTiN at 7/64" diameter. This 4-flute square end mill uses a double-end design, giving compact-job shops two usable cutting edges from a single tool.
ALTiN coating helps this tool resist heat and wear better than a bare carbide cutter, and the short 5/32" length of cut keeps it well suited to small slots, fine profiles, and shallow flat-bottom details. With a 30° helix, the 440-1094-ALTiN handles light side wall milling across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 7/64"
- Shank: 1/8"
- Length of Cut (LOC): 5/32"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: 440 Series
- Part No: 440-1094-ALTiN
Key Performance Features:
- 4-flute square end built for small precision milling
- Double-end design gives cutting use from both ends
- ALTiN coating improves heat and wear resistance
- Compact length of cut supports better control in tight features
- Handles small slots, profiles, and flat-bottom work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
