Product Overview

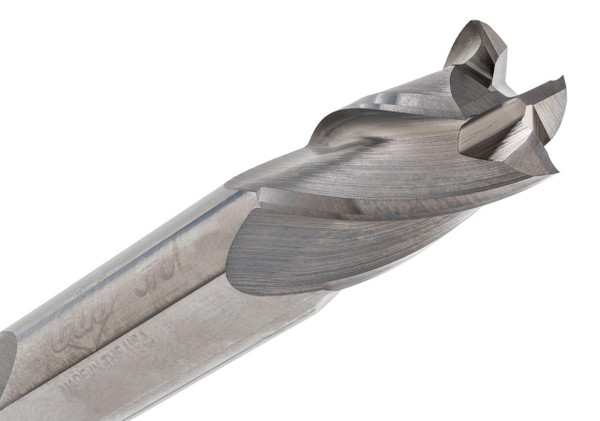

Small precision milling with extra tool life, that's the 440-1094 at 7/64" diameter. This 4-flute square end mill uses a double-end design, giving compact-job shops two usable cutting edges from a single tool.
Its compact size makes it useful for small slots, fine profiles, shallow flat-bottom details, and light side wall work. With a 30° helix and uncoated carbide construction, this 440 Series cutter provides dependable general-purpose performance across common CNC materials.
Tool Specifications:
- Diameter: 7/64"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 440 Series
- Part No: 440-1094
Key Performance Features:
- 4-flute square end built for small milling work
- Double-end design gives use from both cutting ends
- 30° helix supports smooth chip control
- Compact size performs well in tight features
- Handles slots, profiles, plunging, and side wall milling
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
