Product Overview

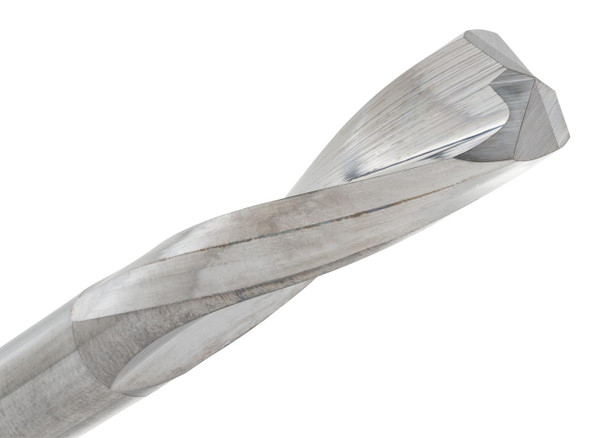

Small, controlled hole-making at 7/64" diameter, that's the 506-1094. This 2-flute solid carbide drill is suitable for CNC drilling work where clean entry, stable cutting, and controlled small-hole performance are needed.
This drill uses a 135° drill point with an uncoated solid carbide body for straightforward shop drilling conditions. With a 13/16" length of cut and 1-13/16" overall length, the 506-1094 is a practical option for compact production drilling.
Tool Specifications:
- Diameter: 7/64"
- Shank: Not listed on page
- Length of Cut (LOC): 13/16"
- Overall Length (OAL): 1-13/16"
- Flutes: 2 Flute
- End Style: Drill Point
- Material: Solid Carbide
- Coating: Uncoated
- Drill Point: 135°
- Radius: No
- Series: Solid Carbide Drills
- Part No: 506-1094
Key Performance Features:
- 2-flute solid carbide drill built for controlled hole-making
- 135° drill point supports clean, controlled entry
- 7/64" diameter suits small-hole drilling work
- 13/16" length of cut gives compact drilling reach
- Uncoated carbide body performs well in standard conditions
- Suited to repeatable CNC drilling and production hole work
