Product Overview

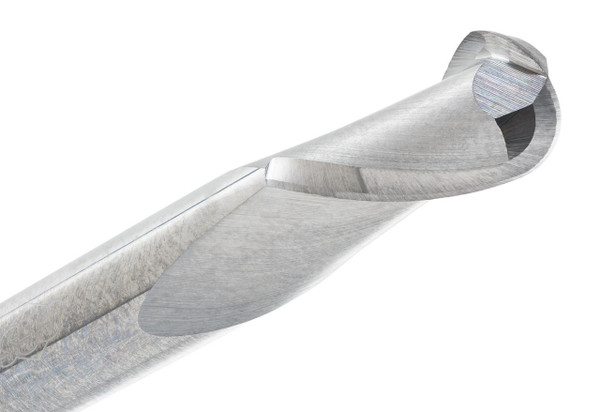

The 422-1094 gives machinists a double-end option for small contour work, which stretches the tool's usable life without changing how it performs. This 7/64" diameter 2-flute ball end mill carries a .0547" radius, big enough to handle real profile work but still small enough for detail-focused jobs.
There's nothing coated on this one, and the 30° helix keeps things predictable across common shop materials. It's a practical everyday cutter for rounded pocket details, light contour passes, and finishing work in mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, without asking the operator to think twice about setup.
Tool Specifications:
- Diameter: 7/64"
- Shank: 1/8"
- Length of Cut (LOC): 5/32"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0547"
- Series: 422 Series
- Part No: 422-1094
Key Performance Features:
- 2-flute ball end design for small-scale contour milling
- Double-end build gives two usable cutting edges
- .0547" radius supports smooth rounded cuts
- 30° helix keeps the cutting action controlled
- Suited to finishing, blending, and small profile work
- Machines mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
