Product Overview

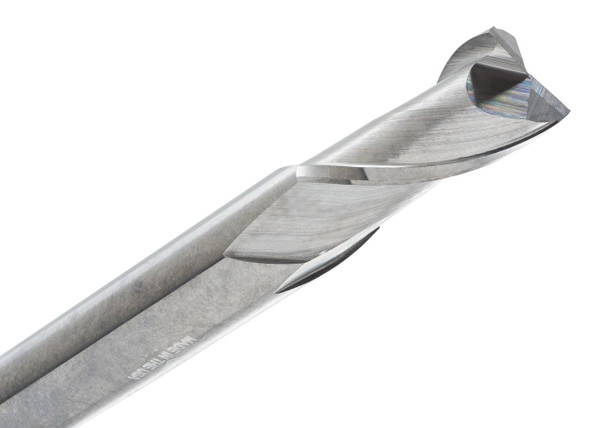

Two working ends packed up in that small square end mill thing—the CGS Tool 420-1094 brings the value to a 7/64" diameter, and it’s a 2-flute cutter from the double-end 420 Series, made more for chip clearance and cleaner cutting.
The 2-flute setup gives you extra space for chips, and that square end profile helps slotting and pocketing stay neat. It’s uncoated carbide too, so it takes on mild steels, stainless steel, cast iron, titanium, plus non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 7/64"
- Shank: 1/8"
- Length of Cut (LOC): 5/32"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Design: Double End
- Series: CGS 420 Series
- Part No: 420-1094
Key Performance Features:
- 2-flute square end design provides strong chip clearance
- Double-end construction gives two usable cutting ends
- 30° helix supports smooth cutting and balanced chip movement
- Solid carbide body improves rigidity and cutting accuracy
- Uncoated finish suited for general-purpose milling flexibility
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for slotting, profiling, pocketing, and small-feature milling
