Product Overview

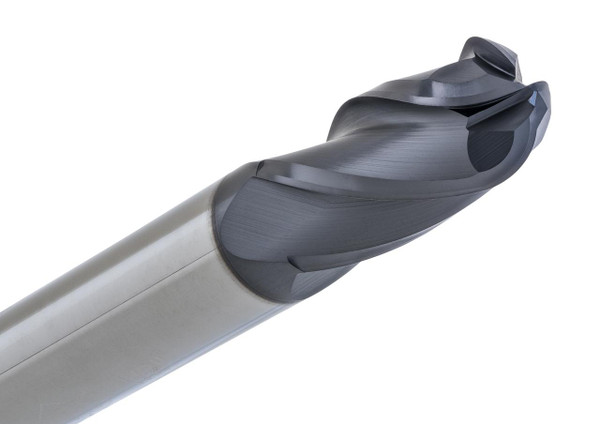

Small profile and contour milling with added coating protection, that's the 142-1719-ALTiN at 11/64" diameter. This 4-flute ball end mill carries a .0859" radius, sized for surface blending, pocket finishing, and compact 3D profile work.
ALTiN coating helps the cutter resist heat and wear during tougher milling conditions than a bare carbide tool would tolerate as well. With a 30° helix and single-end design, this 142 Series ball end mill handles roughing, finishing, slotting, profiling, plunge work, and side wall milling across a wide range of materials.
Tool Specifications:
- Diameter: 11/64"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0859"
- Series: 142 Series
- Part No: 142-1719-ALTiN
Key Performance Features:
- 4-flute ball end built for small contour milling
- .0859" radius supports smooth, rounded features
- ALTiN coating improves heat and wear resistance
- 30° helix supports controlled, general-purpose cutting
- Suited to finishing, blending, and compact profile work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
