Product Overview

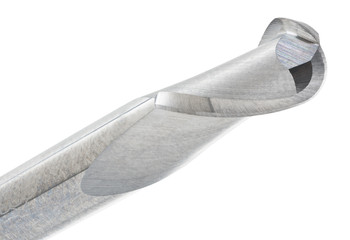

Precise radius control at 11/64" diameter — the CGS Tool 142-1719 is a 4-flute ball end mill from the single-end 142 Series built for 3D surface milling, mold details, and blended features.
The ball nose keeps curved surfaces smooth, and 4-flute construction adds stability through finishing and profiling. Uncoated carbide handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 11/64"
- Shank: 3/16"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2"
- Flutes: 4 - Ball End
- Radius: .0859"
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Design: Single End
- Series: CGS 142 Series
- Part No: 142-1719
Key Performance Features:
- 4-flute ball end design for contouring and smooth finishing
- Ball nose profile supports 3D surface work and radius milling
- 30° helix helps maintain balanced cutting and chip movement
- Solid carbide construction provides rigidity and repeatable accuracy
- Uncoated finish suited for general-purpose machining flexibility
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for profiling, mold details, finishing passes, and surface blending
