Product Overview

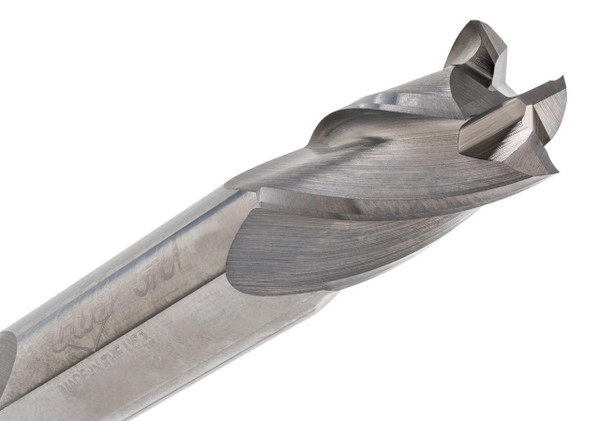

Small jobs benefit from tool life just as much as big ones, and the 440-1719 delivers that with a double-end build. This 11/64" diameter 4-flute square end mill is sized for smaller-scale milling where clean square-end cutting matters more than heavy removal.
With a 30° helix and uncoated solid carbide construction, this tool performs steadily across common shop materials without any special setup. Small slots, compact profiles, plunge work, flat-bottom features, and light side wall milling are all a good fit across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 11/64"
- Shank: 3/16"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 2"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 440 Series
- Part No: 440-1719
Key Performance Features:
- 4-flute square end built for small general-purpose milling
- Double-end design provides use from both cutting ends
- 30° helix supports dependable, controlled chip flow
- Handles slots, profiles, plunging, and side wall milling
- Uncoated carbide body performs well in standard conditions
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
