Product Overview

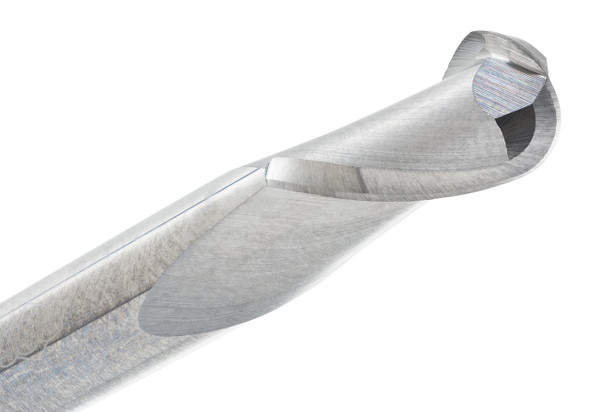

Small radius work benefits from a tool that lasts through two cutting edges instead of one, and the 422-1719 delivers that with its double-end build. This 11/64" diameter 2-flute ball end mill carries a .0859" radius, sized for compact contour and profile work.
The 30° helix keeps things smooth and predictable, and the uncoated carbide body handles everyday materials without complaint. Rounded pocket details, light finishing passes, and small profile work are all a good fit across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 11/64"
- Shank: 3/16"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 2"
- Flutes: 2 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0859"
- Series: 422 Series
- Part No: 422-1719
Key Performance Features:
- 2-flute ball end built for small contour milling
- Double-end design gives two usable cutting edges
- .0859" radius supports smooth rounded profiles
- 30° helix keeps cutting action steady
- Suited to finishing, blending, and small pocket work
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
